SAFE CREW TRANSFER

At Oceanic Offshore we take safety very seriously. As such, we offer an extensive selection of Personal Protective Equipment, Workplace Safety, Drop & Fall Protection enabling you to do your job with a peace of mind.


X-904 Personnel Transfer Device

Personnel Transfer Device

  • Overhead & outer passenger protection

  • Passenger positioning system

  • Standing during transfer prevents passengers from losing their“sea legs”

  • Standing during transfer allows for more efficient egress to a safe area

  • Passengers face“inward”– a familiar & comfortable position during  transfers

  • Improved step in positions with netted baggage area

  • Bottom cushions for softer landings

  • Safe transportation of injured personnel

  • Eliminates slack netting

  • Collapsible for easy transport & storage

  • Models for 4,6,8,10 & 12 passengers

  • Can be refurbished and recertified

  • ABS type approved


What is the In Service Date?

  • The In Service Date is the date when the X-904 is removed from its packaging.

  • This determines when the 6 month inspection and 2 year refurbishment should take place.

  • The In Service Date will need to be noted in the operations manual & physical product included with the purchase of the X-904.


X-904 Refurbishment Program


Refurbishment Program Cycle:


X-871 Personnel Transfer Net

Personnel Transfer Net

  • Servicing offshore industry for over 50 years.

  • Collapsible for easy storage

  • Affordable

  • More offshore safe transfers than any personnel transfer device in history

  • Inducted into the Offshore Oil Hall of Fame

  • Netting Lines 3/4”, 9950 lbs Tested Each

  • Padding / Buoyancy is shock absorbing, synthetic floating material

  • Models for 4,6,8,10 & 12 passengers

Not all Billy Pugh Co. X-871 Personnel Baskets are ABS Type approved.

All type approved X-871 series personnel basket/nets start with a “5” in the serial number (ie. 5434-19).

The last 2 numbers are the year of manufacture.

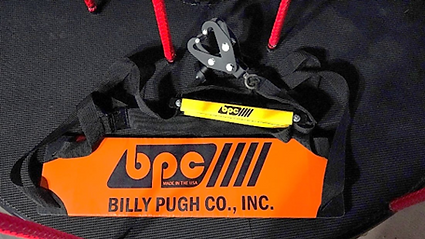

All type approved products have the ABS tag attached (see photo) and the X-871 series has “ABS TYPE APPROVED” stenciled on the bottom orange cover.


Can the X-871 be refurbished?

​

A:

The X-871 series is not designed to be refurbished. The reason being that by the time the personnel net is taken apart and re-assembled with certified new parts, it is more expensive than buying a new net.

​

How often should the X-871 be replaced?



A:

As a general rule, we recommend that all Billy Pugh Co. X-871 series personnel nets be replaced annually when used on a daily basis (such as a jack-up drilling rig). On production platforms and other applications where the personnel net is used less frequently, we recommend that it be changed out every other year. This is a recommended guideline only and will vary depending on condition, how well the net is cared for and stored.


Physical Product Itself


How to Know if your unit is ABS Type Approved


Personnel Transfer Net

Personnel Transfer Device


Man Baskets (OMB /EMB)

Billy Pugh Company’s OSHA Man Baskets (OMB) are designed with your personnel’s safety and job satisfaction in mind. Whether you are having to work in the air by crane or forklift the OMB baskets will keep you safe.  The OMB baskets are built to OSHA standards with heavy duty steel and the exceptional quality you’ve come to expect when you purchase of the OMB Basket from the Billy Pugh Company.


SOLAS Ring Buoy


USCG approved throwable device for all vessels.



Meets SOLAS. Approval # 160.050/120/1 Polyurethane foam buoyant material provides a minimum buoyant force of 32 lbs.



Addition of reflective tape on ring buoy per SOLAS standard.

  • Molded of high impact polyethylene.

  • The color will not dent or peel.

  • Rigged with black polypropylene terminated with a hand splice.

  • Crane baskets offer overhead protection

  • Shock absorbing feet on OMB-1

  • Room for workers and tools

  • Safety guard rail

  • Access gate with automatic latch opens inwardly per European Standards NEN-EN 14502-1 on each

  • Diamond tread plate floor

  • Crane Basket Sizes: 1, 2, & 4

  • Forklift Basket Size: 2

  • SWL 1000 lbs. for all OMB Models

  • 125% test weight on certain models

  • Used in a variety of applications both on and offshore


Containerised Fast Throw Lines


Billy Pugh Company’s Containerised Fast Throw Lines are a must for any application that requires a dependable length of rope.



Whether it’s for a ring buoy line, a painter rope or any other application where you need a rope that will not be deteriorated or tangle upon deployment.



CFTL’s offer great dependability and value.



The PVC containers keep the rope out of the elements and upon deployment- are tangle resistant.



The CFTL’s and LFP’s are designed to be an one time use item.



Once deployed, the rope cannot be returned to the tube for reuse.


WVO Work Vest


DESCRIPTION

  • Coated with vinyl which is tough, fire retardant, self-extinguishing, highly abrasive resistant and easily cleaned.

  • Material is resistant to oil, gasoline and basic chemicals.

  • Adjustable 1 " black nylon webbing straps securely sewn with nylon thread, helping to prevent rot and mildew

  • Work vest incorporates a "Slot" in the back so that the D-Ring of a body harness can pass through it.

  • Heavy-duty aluminum slides & acetal closures resist corrosion.

  • Marking and labeling is screen printed in water-resistant, vinyl ink.

  • Weight 2 lbs.

  • Sizing to fit chest size 35” to 50”

  • Buoyance of 18 lbs.


DESCRIPTION

  • Heavy-duty manganese bronze and acetal hardware, corrosion resistant. Certified and tested for USCG and FAA specifications

  • All straps molded into the flotation so that much like a harness, body strain will be on straps and not flotation material.

  • Adjustable 1 " black nylon web straps securely sewn with nylon thread, which is rot and mildew proof.

  • Coated with vinyl which is tough, fire retardant, self-extinguishing, highly abrasive resistant and easily cleaned.

  • Material is resistant to oil, gasoline and basic chemicals.

  • Adjustable 1 " black nylon webbing straps securely sewn with nylon thread, helping to prevent rot and mildew

  • Marking and labeling is screen printed in water-resistant, vinyl ink.

  • Weight 2 lbs.

  • Sizing to fit chest size 35” to 50”

  • Buoyance of 18 lbs.


The Billy Pugh Company (BPC) X-1000 Personnel Transfer Device incorporates new innovative safety features following extensive customer engagement to determine what the rider truly values in safety and comfort during transfer.

Specification:

  • 4 Person Capacity

  • WLL 1,200 lbs.

  • Weight: 800 lbs.

  • ASME B30.23-2022 Compliant

  • EN 14502-1 Compliant

  • Patent Pending


1. Passive Heave Compensation

for Softer Pick Up / Takeoff


2. Self Righting Flotation & Enhanced Impact Protection


3. Grabline Cushions For Improved Rider Comfort


4. Floor Grating for Viewing of Landing for the Rider


5. Induvial Standing Cushions For Softer Landing


6. Emergency Seat For Rider Who Cannot Stand During Crew Changed


Suspended Emergency Seat

The SES-1 Emergency Seat is a hanging seat that clamps to the upper lift frame of any X-904 and X-1000.

​

This upper clamp device enables it to quickly attach or detach when needed.

​

This device is NOT designed for everyday Personnel Transfers.

​

The functional design is to enable a person who is sick or injured, such that standing during transfers is not advisable.

​

This seat can also provide a medic with the opportunity to sit adjacent to a stretcher during transfers.

​

Given the simple scissor clamp connection point the X-904 Emergency Seat can be used on all X-904 and X-1000 Personnel Transfer Devices.


Key Design Features:


  • Compatible with all X-904 and X-1000 Personnel Transfer Devices


  • 18 oz Orange vinyl seat cover


  • Adjustable back strap for support


  • Durable PVC 450 reinforced seat base


  • Cushioned Stainless Steel Spreader bar


  • Easily attach to top frame with scissor clamp


Personnel Transfer Net

Designed for Ship-to-Ship Personnel Transfers


The X-840-STS “Dyna Basket” is specifically designed for Ship-to-Ship (STS) personnel transfers, where crane booms are shorter and landing space is limited.


With a smaller footprint and shorter load line, the basket can safely transfer up to four persons per lift.


This device benefits personnel transferring between tankers or Lightering Crews up to vessels without relying on Pilot Ladders.


Utilising UV resistant materials and stainless steel, this basket can deliver safe duty for up to four years in the field.


Key to this longer life is regular use of the vinyl storage cover which is a required feature of this product.

Key Design Features:

  • 48″ Stainless Steel bottom ring


  • Shorter 3′ Stainless Steel Load Line


  • Light weight and compact


  • Working Load Limit: 1,200 lbs


  • Vinyl cover included and required


  • Up to four-year life in the field


  • ABS Type Approval


Escape & Swing Ropes

Billy Pugh Company provides many types of high performance knotted escape ropes and swing ropes that may be used in nearly any rigging or lifting application.


Polypropylene Knotted Escape Rope

Manila Knotted Escape Rope

Swing Rope

  • 1 1/2″ with knots 5′ apart

  • 1 1/4″ with knots 2′ apart

  • 1 1/4″ with knots 3′ apart

  • 1 1/4″ with knots 5′ apart

  • 1 1/4″ with knots 3′ apart

  • 1/4″ with knots 5′ apart

  • 1″ with knots 2′ apart

Our swing ropes are truly a custom item and are the best available system for offshore swing ropes.



These ropes are not only durable and long lasting (they are dipped for UV protection) but they are horizontally wrapped so that when someone swings, they have much more of a “pistol grip” to hold on with.



They are economical because they last so long because of being treated, they don’t need to be replaced as often as a regular plain knotted rope.



BPC swing ropes are the best and the industry standard in safety.


Embarkation Rope Ladders

Billy Pugh Co. offers a variety of Ladders from wire, to rope, to chain ladders.


R1-N

Non-skid surface; Rung: 14” apart; Painted international orange; 7/16” Double braid nylon ropes; Dipped in urethane to resist fire chemicals and bond to fibers for additional durability; Stainless steel thimble eyes; Oakwood Rung (1″ x 4 1/2″ x 20″)


C-15

Same as C-1 only W/6″ round aluminum disc “stand offs” every other rung.

Flexible ladder with the following specifications: SCH 40, 1 1/2″ aluminum round rungs, 14” apart, non-skid surface, 3/16” galvanised chain, stainless steel bolts and lock nut, Aluminum Round Rung (1 1/2″ x 20″) SS steel thimble eyes on top.


R1-Pilot Ladder

Same as R1-N plus every 10th rung is 70” long

Oakwood Rungs (2″ x 2″ x 18″) – Non-skid surface; rung: 14” apart, painted international orange, 3/4” double braid nylon ropes, dipped in urethane to resist fire chemicals and bond to fibers for additional durability, 600 lbs. safe working load / rung, SS steel thimble eyes on top.

WRN-18-14


Non-skid surface; Rung: 14” apart; Painted international orange; 3/4” Double braid nylon ropes; Dipped in urethane to resist fire chemicals and bond to fibers for additional durability; 600 lbs safe working load / rung; Oakwood Rung (2″ x 2″ x 18″)


Automatic Crew-Overboard Light


The SM-3 is a high intensity LED strobe which provides 360° visibility for approximately 2 miles.



This compact yet durable marker light facilitates rescue by automatically activating and beginning to strobe when in

the water, working for over 40 hours at 30°C (86°F) or over 24 hours at -1°C (30°F).



Perfect for commercial marine, petro-marine, cruisers, and any other application needing a reliable Crew Overboard Marker (COB) light, the SM-3 floats upright in all conditions, ensuring it will keep shining when you need it the most.


Boat Rescue Net

Retrieving a person overboard is not something we ever wish to do.  The right equipment will make all the difference in a life and death situation.

Retrieving a person from the water can be a difficult process due to the distance from the rail to the water however, the X-544 simplifies this procedure.



Lifting a person or multiple people by using the ship’s on board davit with the X-544 takes much of the difficulty away, such as having to pull them or have them climb onto the vessel.



Additionally, when a man overboard emergency has occurred, the X-544 will allow the victim to swim inside or be assisted inside the netted area and be davit lifted back on board to safety.


The BPC X-544 is a boat davit or crane launched rescue system. Safe and effective for retrieving man overboard operations with the option of not putting a rescue swimmer in harm’s way. Rated for 2 persons
